Build a video, map, and activity dashboard

The repository includes a dependency-free custom web application that displays prepared video, live-at-playhead geospatial geometry, decoded telemetry, and an activity feed. It demonstrates the public player assets rather than embedding private browser APIs.

python examples/web_dashboard/server.py \
  "samples/private/esri-fmv/Truck.ts"

FFmpeg first prepares media.mp4; the library independently creates timeline.json from the original transport. The temporary directory is served only on 127.0.0.1:8766 by default and is removed at shutdown.

The running tutorial prints the URL before serving:

FMV dashboard: http://127.0.0.1:8766/

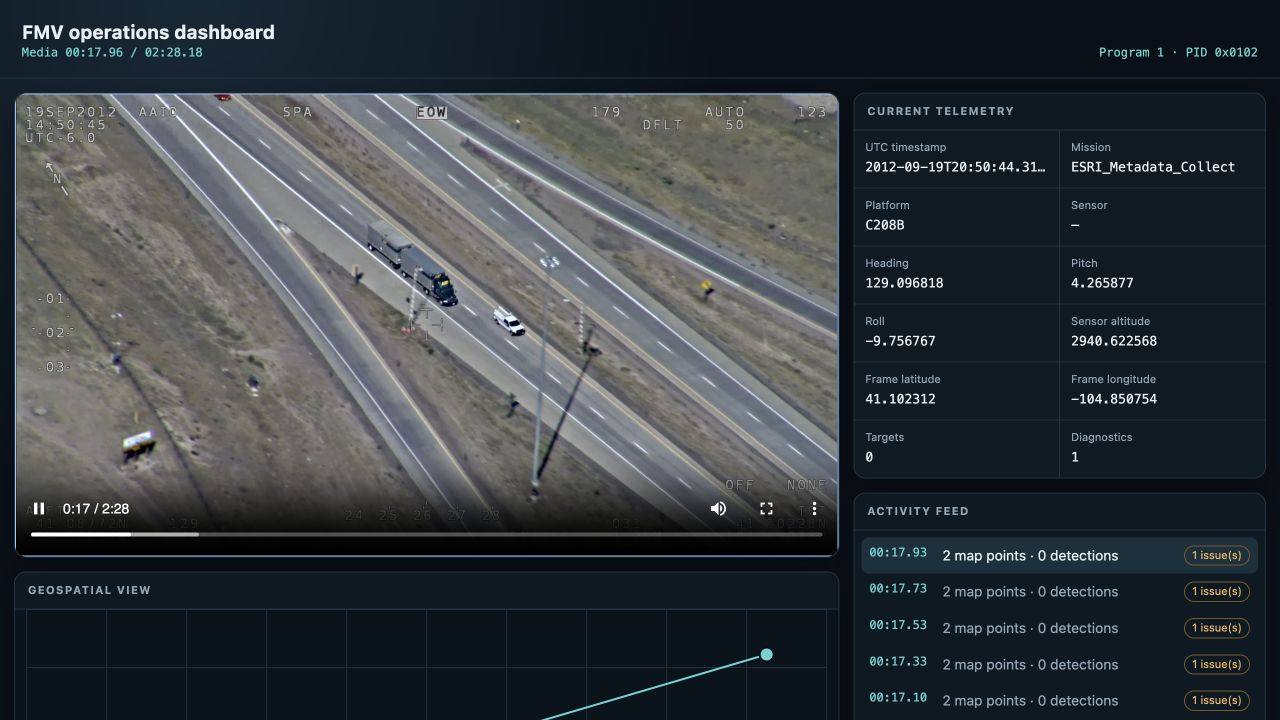

Actual output from the checksum-pinned Esri Truck.ts fixture at media time 17.96 seconds. Program 1 / PID 0x0102 drives both the current telemetry and activity feed; the map plots the current sensor and frame-center coordinates.

What the browser consumes

The page uses only three assets:

• media.mp4, a browser-compatible representation of the original media;
• timeline.json, ordered samples keyed by media-relative time; and
• index.html, the application renderer.

On every video time update, the page selects the newest sample whose time_seconds is not in the future. That one sample drives the map, telemetry, diagnostics, VMTI activity, and overlays, preventing independently drifting UI panels. The source implementation is in examples/web_dashboard/index.html.

The bundled stanag4609-player adds a pannable OpenStreetMap baselayer, mapped frame footprints and VMTI boxes, a grouped 30-second activity feed, and an interactive detection timeline. The timeline aggregates observations into no more than one time bucket per canvas pixel (and never more than 2,048), so a mission with millions of observations does not become millions of DOM nodes. Within each bucket it stacks the five most prevalent classes plus other, and uses logarithmic height scaling so short bursts remain legible beside dense periods. Hover a bucket for its precise interval and class counts; click, drag, or use the keyboard to seek. Use http://127.0.0.1:8765/?basemap=off when testing offline. The public OSM tiles are appropriate for this low-volume reference UI, not an unrestricted production tile backend.

Use the asset API in another backend

from stanag4609.player.server import prepare_player_assets

assets = prepare_player_assets("mission.ts", "build/fmv-player")
print(assets.media, assets.timeline, assets.root)

Serve the returned files with normal HTTP range support. A FastAPI, Django, Flask, Starlette, Node, or Rust service can use the same stable JSON boundary. For long recordings, use the included incremental mode or page/index the timeline by time instead of returning it as one response. The reference server's /metadata/summary endpoint returns a sparse full-mission overview with exact totals and bounded heavy-hitter labels; /metadata/events then supplies the detailed samples around the playhead.

The bundled reference player also exposes the same samples incrementally:

stanag4609-player mission.ts --stream-metadata

Its /metadata/events SSE endpoint sends current state at the requested playhead and then paces future samples against media time. The browser holds at most 512 samples, restarts from the playhead after seeking, fetches one effective sample for paused scrubs, and accounts for playback-rate changes. A sparse 2,048-bin overview keeps the full recording visible while detailed memory stays bounded. This is directly useful as a side-channel protocol example even though the prepared MP4 is not a live media gateway.

Move from recorded to live

The example prepares the whole file, so it is deterministic and seekable but is not a low-latency transport. A live deployment keeps two synchronized paths:

MPEG-TS -> transform/remux -> WebRTC, MSE, or HLS gateway -> video element
                 |
                 +-> bounded PTS/UTC metadata feed -> map, overlay, activity UI

Carry program, PID, PTS/UTC, discontinuity, and sequence identity over the side channel. Browser arrival time is not media time. Apply authentication, authorization, TLS, origin policy, request limits, and audit logging in the web application or gateway; the tutorial server is localhost development tooling.

See web clients for rendering rules and live transforms for the incremental transport path.
